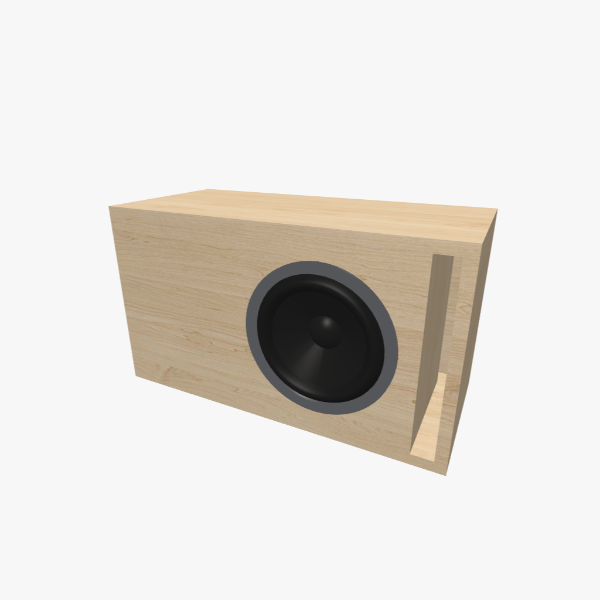

Single 8-inch Round Vented / Bass-Reflex Subwoofer Box - 15 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 8-inch round subwoofer, featuring a 15 L chamber tuned to 38 Hz. Built from 16 mm (5/8 inch) material in a Simple Rectangle shape, the external dimensions are 529 × 296 × 240 mm (20.77 × 11.68 × 9.48 in). It utilizes one L-shaped slot port with an area suitable for high-output, large-excursion drivers and SPL-oriented use with high airflow demand. The design is ideal for everyday car-audio use, accounting for limited trunk space and installation constraints, while also serving as a general-purpose home subwoofer enclosure for music and stereo systems that balances bass extension, cabinet size, output, and low distortion.
Volume & tuning
15 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
529 × 297 × 241
Box dimensions (inch)
20.77 × 11.68 × 9.48
Max RMS speaker power up to
1200 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
8"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
8107
