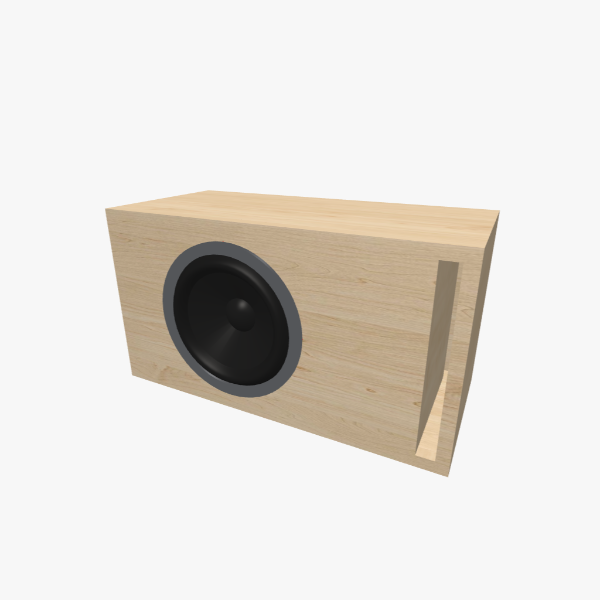

Single 8-inch Vented / Bass-Reflex Subwoofer Box - 15 L / 38 Hz
Description
This 15 L Vented / Bass-Reflex enclosure is designed for a single 8-inch round subwoofer, featuring a chamber tuned to 38 Hz and one L-shaped slot port. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions measure 486 × 264 × 227 mm (19.1 × 10.4 × 8.94 in). It is ideal for everyday car audio where trunk space is limited, as well as for home stereo systems, balancing bass extension, output, and low distortion. The port area is specifically suited for high-output drivers with increased cone excursion and airflow demand.
Volume & tuning
15 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
487 × 264 × 227
Box dimensions (inch)
19.1 × 10.4 × 8.94
Max RMS speaker power up to
1600 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
8"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
5189
